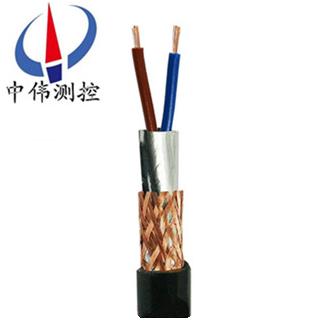

Product introduction:
The Ann signal control cable is widely used in chemical and petrochemical industry medium explosive environment automatic control system, control circuit and protection circuit etc. Various kinds of the Ann circuit for weak signal transmission;Besides has the characteristics of small distributed parameter, strengthening the shielding layer, make it has excellent resistance to external electromagnetic interference and radio-frequency interference etc.
This Ann signal control cable, the conditions of use:
1: rated voltage Uo/U: 300/500 v.
2: the highest working temperature: general type does not exceed 70 ℃;Models with after 105 is highest do not exceed 105 ℃
3: the lowest temperature: fixed installation: to 40 ℃, the fixed installation: 15 ℃.
4: the minimum bending radius: no armoured layer cable should be not less than 6 times of cable diameter;Have armored cable should be not less than 12 times of cable diameter.
Three, product model, name, and conditions of use:
| model | The name says | Using range |
| ia-K2YV | The Ann model off grade PE, PVC sheathed two core stranding shielding control cable | Fixed laying indoors, in cable trench, or pipeline. |
| ia-K2YVR | This Ann type PE insulated PVC sheathed two core stranded shielding control cable | Suitable for soft required. |
| ia-K2YV(EX) | This safety type PE insulated, PVC sheathed twisted shielding instrument with two core cable | Fixed laying indoors, in cable trench, or pipeline |
| ia-K2YV(EX)R | This Ann type PE insulated PVC sheathed two core stranded shielding instrument with a soft cable | Suitable for soft required |
| ia-K3YV | This safety type PE insulated PVC sheathed three core stranding shielding control cable | Suitable for soft required |
| ia-K3YVY | This safety type PE insulated PVC sheathed three core stranding shielding control cable | Suitable for soft required |
| ia-K3YV(EX) | This safety type PE insulated PVC sheathed three core stranding shielding instrument with cable | Fixed laying indoors, in cable trench, or pipeline |
| ia-k3YVR(EX)R | This safety type PE insulated PVC sheathed three core stranding shielding instrument with a soft cable | Suitable for soft required |
Note: according to user needs can also produce type sheathed or flame retardant in the cable.
Four, the signal control cable production range:
| model | The (group) | Nominal section (was) |
| ia-K2YV ia -K2YVR | 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 14, 16, 19 | 0.75 1.0 1.5 2.5 |
| ia-K2YV(EX) ia-K2YV(EX)R | 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 14, 16, 19 | 0.75 1.0 1.5 2.5 |
| ia-K3YV ia-K3YVR | 1, 2, 3, 4, 5, 7, 8, 9 and 10 | 0.75 1.0 1.5 |
| ia-K3YV(EX) ia-K3YV(EX)R | 1, 2, 3, 4, 5, 7, 8, 9 and 10 | 0.75 1.0 1.5 |
