A, use:

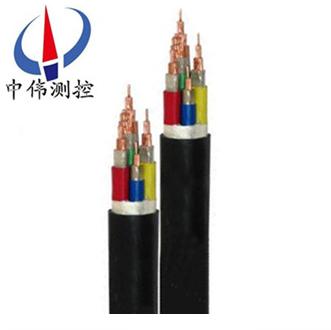

KVVP, RVVP seriesShielding signal cable(shielding signal lines) is suitable for rated voltage up to and including U0 / U 450/750 power electrical appliances, instrumentation and telecommunications equipment control, monitoring circuit and protection circuit connecting cables, it is mainly used for preventing electromagnetic interference, requires shielding.
Second, the product standard
GB9330-1998?
Three, use conditions
Cable guide Hugh's long-term allowed working temperature is 70 ℃, cable installation allows the bending radius:
1, no armoured layer of the cable, should not be less than 6 times of cable diameter.
2, there are armoured or copper tape screened cable, should not be less than 12 times of cable diameter.
3, have screened flexible cable, should be less than 6 times the cable diameter.
Fourth, model, name and use range
1. Polyethylene insulated PVC sheathed shielding signal (control) cables
Model name use scope:
KVVP copper core PVC insulated and sheathed braided shielding control cable laying indoors, in cable trench, pipelines and other fixed occasion requires shielding.
KVVRP copper core PVC insulated and sheathed woven block control soft cable laying indoors mobile require soft and shielding, etc.
KVVP2 copper core PVC insulated and sheathed control copper tape screened cable laying indoors, in cable trench, pipelines and other fixed occasion requires shielding.
KVVP3 copper core PVC insulated and sheathed aluminum-plastic composite belt shielding control cable laying indoors, in cable trench, pipelines and other fixed occasion requires shielding.
KVVP - 22 copper core PVC insulated and sheathed woven BingBiGang sheathed control cable to elaborate in indoor, cable ducts, pipes, burying and can bear external mechanical forces, such as larger fixed occasion.
KVVP2-22 copper core PVC insulated and sheathed control cable steel tape armoured elaborate in indoor, cable ducts, pipes, burying and can bear external mechanical forces, such as larger fixed occasion.
2. Polyethylene insulated PVC sheathed shielded power cables:
Model name use scope:
Soft RVV conductor, PVC insulated and sheathed power cable laying indoors, in cable trench, pipelines and other fixed places.
RVVP copper core PVC insulated and sheathed weaving to soft power cable laying indoors, in cable trench, pipelines and other fixed occasion requires shielding.
RVVP2 copper core PVC insulated and sheathed copper tape screened soft power cable laying indoors, in cable trench, pipelines and other fixed occasion requires shielding.
RVVP3 copper core PVC insulated and sheathed aluminum-plastic composite belt shielding soft power cable laying indoors, in cable trench, pipelines and other fixed occasion requires shielding.
RVVP - 22 copper core PVC insulated and sheathed woven BingBiGang soft belt sheathed power cable to elaborate in indoor, cable ducts, pipes, burying and can bear external mechanical forces, such as larger fixed occasion.
RVVP2-22 copper core PVC insulated and sheathed steel tape armoured soft power cable to elaborate in indoor, cable ducts, pipes, burying and can bear external mechanical forces, such as larger fixed occasion.
